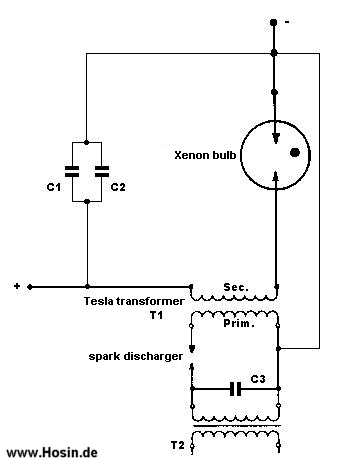

The shown ignition transformer (according to Tesla) comes from the searchlight system XSW 30 in the tank Leopard I, where it was used to ignite a Xenon bulb XBO 450W1. At the circuit diagram one can see, that also other purposes can be realised, for example a plasma arc cutting machine, ozon generator or a spark transmitter. |
| | | |
 | |||
